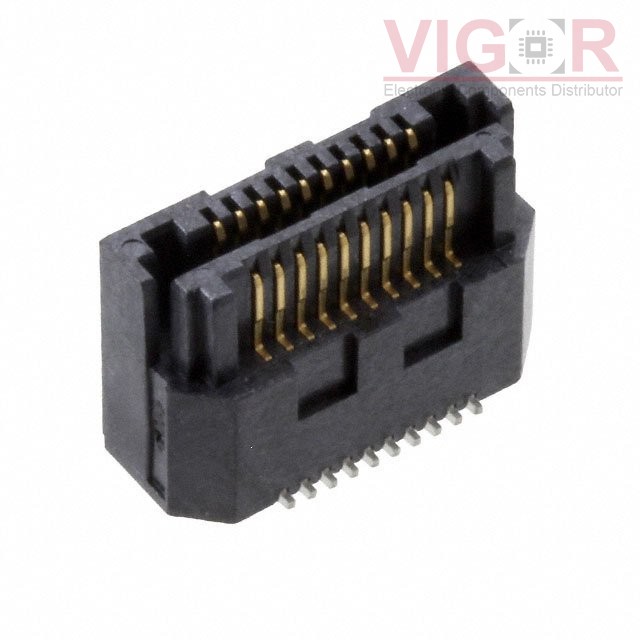

LSS-110-02-L-DV-A-K

Part No :: LSS-110-02-L-DV-A-K

Manufacturer: Samtec, Inc.

VIGOR # :: 3005388

Description: CONN SELF-MATE 20POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: LSS-110-02-L-DV-A-K PDF

Current price of LSS-110-02-L-DV-A-K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LSS-110-02-L-DV-A-K Specifications

Type	Description
Series:	Razor Beam™ LSS
Package:	Tube
Part Status:	Active
Connector Type:	Self Mating, Non-Gendered
Number of Positions:	20
Pitch:	0.025" (0.64mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Board Guide, Pick and Place
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)
Mated Stacking Heights:	9mm, 10mm, 12mm
Height Above Board:	0.287" (7.30mm)
