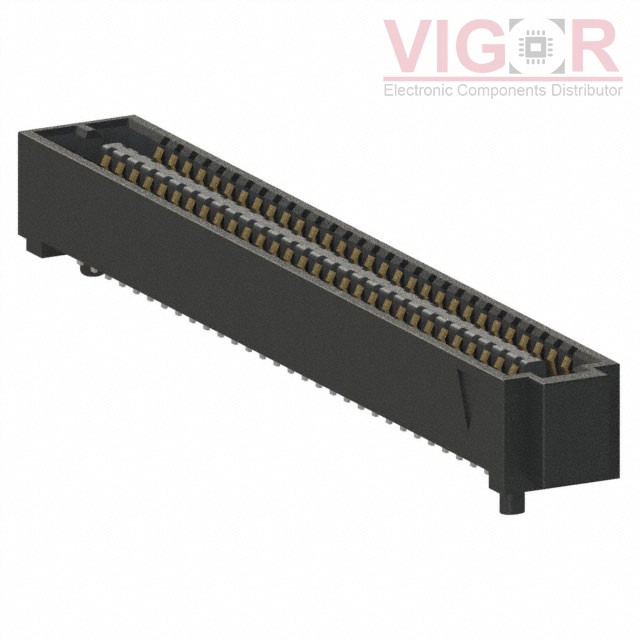

SEAF-30-05.0-L-04-1-A-K-TR

Part No :: SEAF-30-05.0-L-04-1-A-K-TR

Manufacturer: Samtec, Inc.

VIGOR # :: 3005399

Description: CONN HD ARRAY RCPT 120P SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: SEAF-30-05.0-L-04-1-A-K-TR PDF

Current price of SEAF-30-05.0-L-04-1-A-K-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SEAF-30-05.0-L-04-1-A-K-TR Specifications

Type	Description
Series:	SEARAY™ SEAF
Package:	Tape & Reel (TR)
Part Status:	Active
Connector Type:	High Density Array, Female
Number of Positions:	120
Pitch:	0.050" (1.27mm)
Number of Rows:	4
Mounting Type:	Surface Mount
Features:	Board Guide, Pick and Place
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)
Mated Stacking Heights:	7mm, 8mm, 8.5mm, 11.5mm, 12mm, 14mm, 16mm, 18mm
Height Above Board:	0.199" (5.05mm)
