WP7A-S020VA1-R500

Part No :: WP7A-S020VA1-R500

Manufacturer: JAE Electronics

VIGOR # :: 3005761

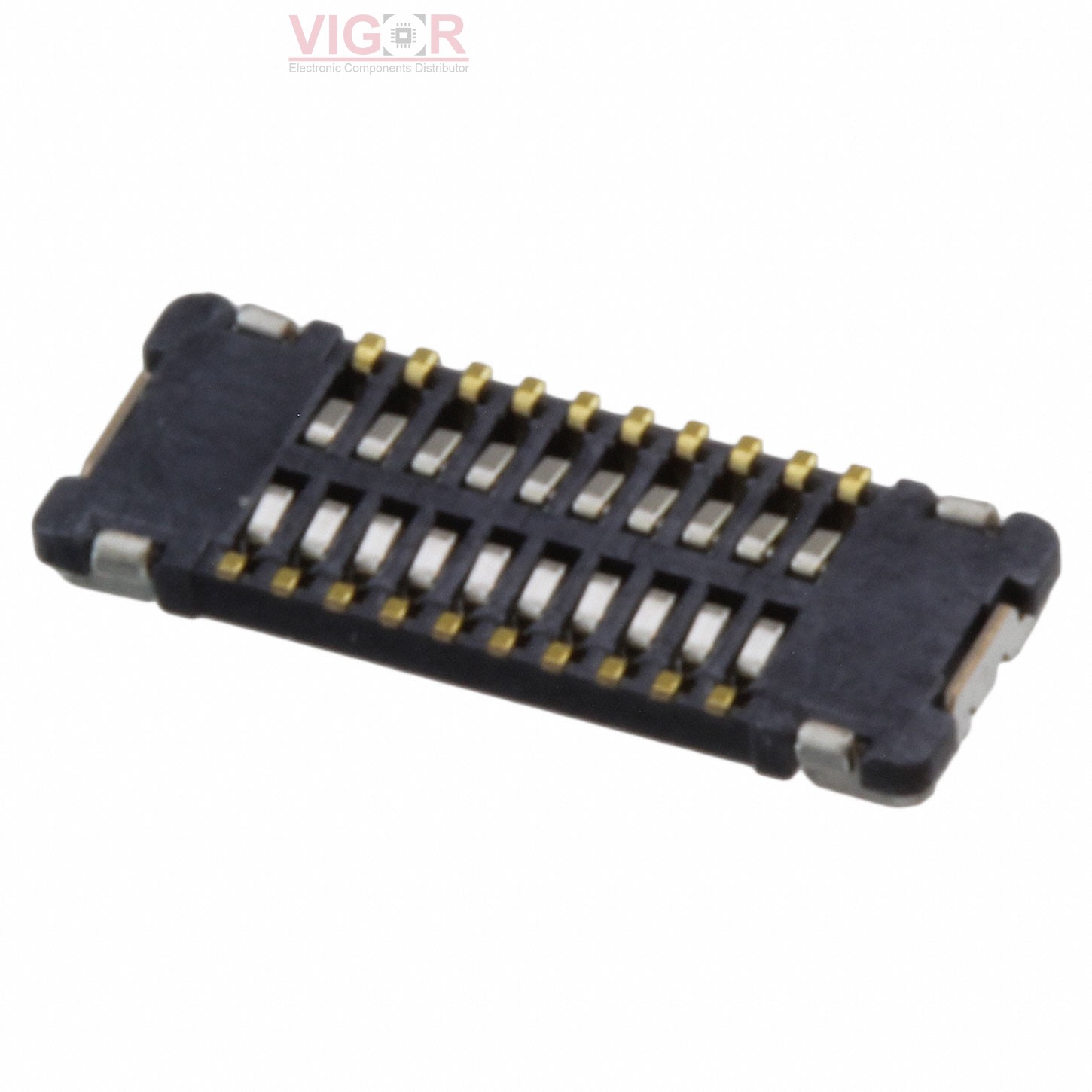

Description: CONN RCPT 20POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: WP7A-S020VA1-R500 PDF

Country of origin: -

Date code: -

WP7A-S020VA1-R500 Specifications

Type	Description
Series:	WP7
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Discontinued at Digi-Key
Connector Type:	Receptacle, Center Strip Contacts
Number of Positions:	20
Pitch:	0.016" (0.40mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Solder Retention
Contact Finish:	Gold
Contact Finish Thickness:	3.94µin (0.10µm)
Mated Stacking Heights:	0.7mm
Height Above Board:	0.028" (0.71mm)
