AXT422124

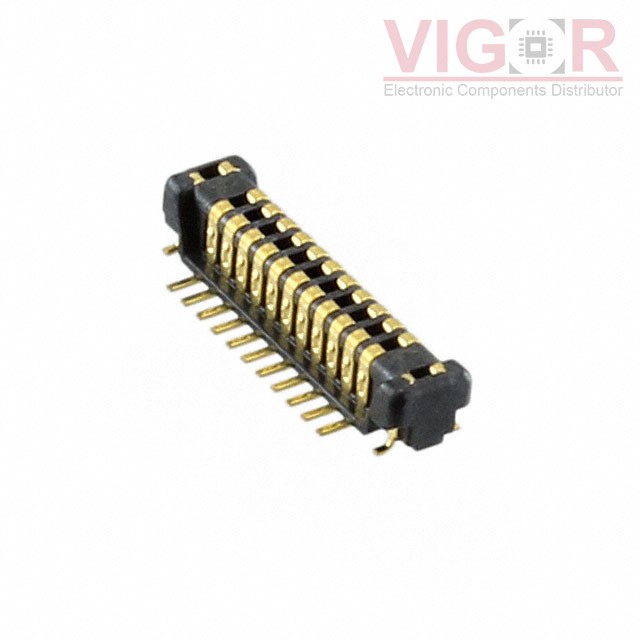

Image is for reference,
please contact us to get the real picture

Part No :: AXT422124

Manufacturer: Panasonic

Description: CONN HDR 22POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: AXT422124 PDF

Availability: 0 pieces

Unit Price: ~~$0.88200~~

Current price of AXT422124 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AXT422124 Specifications

Type	Description
Series:	P4S
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Not For New Designs
Connector Type:	Header, Center Strip Contacts
Number of Positions:	22
Pitch:	0.016" (0.40mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Solder Retention
Contact Finish:	Gold
Contact Finish Thickness:	-
Mated Stacking Heights:	1.5mm, 2.5mm
Height Above Board:	0.049" (1.25mm)

Please confirm the specifications of the products when ordering.
