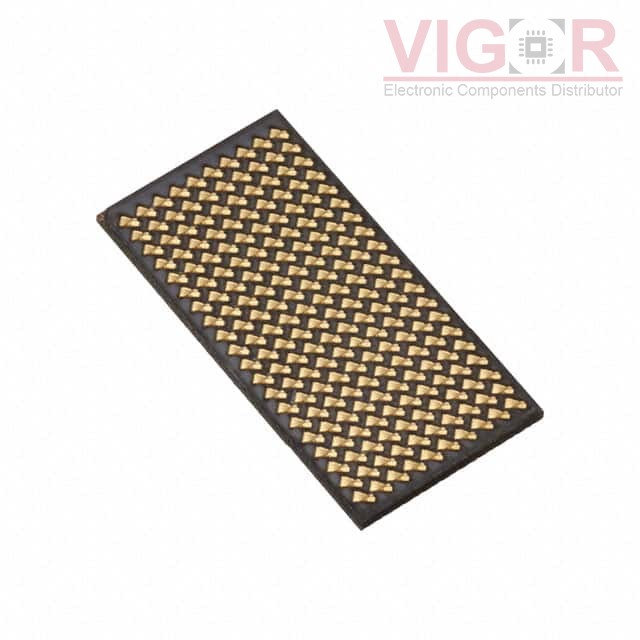

ZA1-20-1-1.00-Z-10-2

Part No :: ZA1-20-1-1.00-Z-10-2

Manufacturer: Samtec, Inc.

VIGOR # :: 3005926

Description: CONN SELF-MATE 200P COMPRESSION

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: ZA1-20-1-1.00-Z-10-2 PDF

Current price of ZA1-20-1-1.00-Z-10-2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ZA1-20-1-1.00-Z-10-2 Specifications

Type	Description
Series:	ZRay® ZA1
Package:	Bulk
Part Status:	Active
Connector Type:	Self Mating, Non-Gendered
Number of Positions:	200
Pitch:	0.039" (1.00mm)
Number of Rows:	10
Mounting Type:	Compression
Features:	-
Contact Finish:	Gold
Contact Finish Thickness:	6.00µin (0.152µm)
Mated Stacking Heights:	-
Height Above Board:	-
