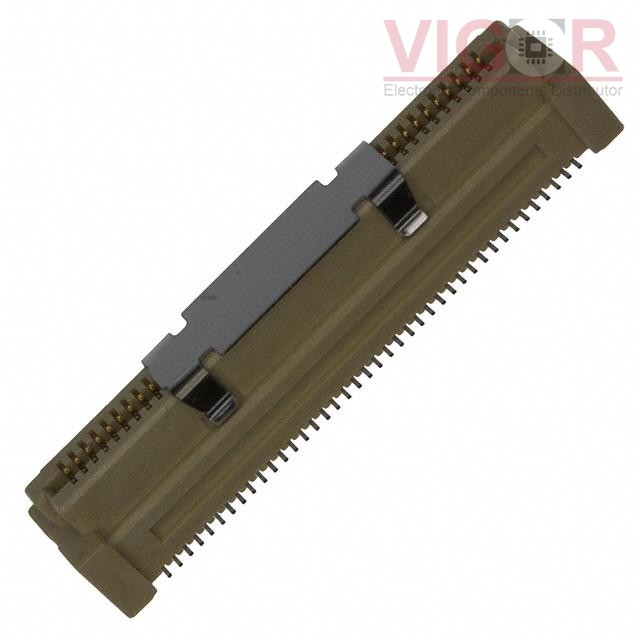

5-5179180-3

Part No :: 5-5179180-3

Manufacturer: TE Connectivity AMP Connectors

VIGOR # :: 3005949

Description: CONN RCPT 80POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: 5-5179180-3 PDF

Current price of 5-5179180-3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

5-5179180-3 Specifications

Type	Description
Series:	Free Height (FH)
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Receptacle, Outer Shroud Contacts
Number of Positions:	80
Pitch:	0.031" (0.80mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Board Guide
Contact Finish:	Gold
Contact Finish Thickness:	8.00µin (0.203µm)
Mated Stacking Heights:	9mm, 10mm, 11mm, 12mm
Height Above Board:	0.305" (7.75mm)
