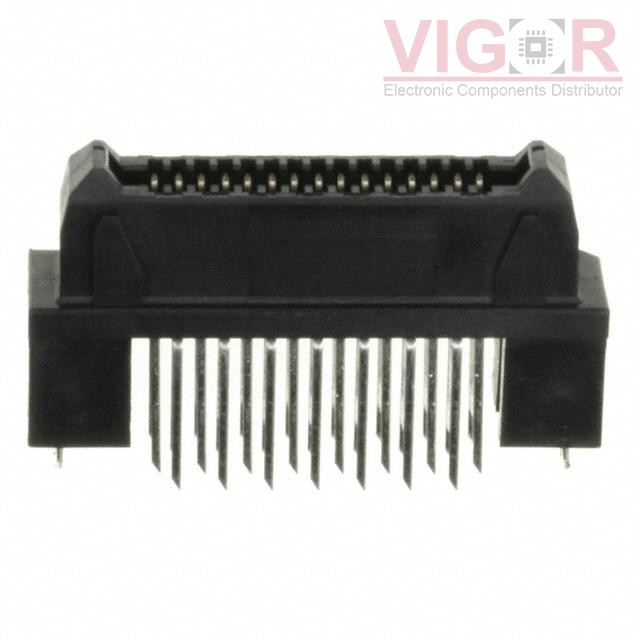

TX24-30R-12ST-H1E

Part No :: TX24-30R-12ST-H1E

Manufacturer: JAE Electronics

VIGOR # :: 3006011

Description: CONN RCPT 30POS VERT GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: TX24-30R-12ST-H1E PDF

Current price of TX24-30R-12ST-H1E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TX24-30R-12ST-H1E Specifications

Type	Description
Series:	TX24
Package:	Tray
Part Status:	Active
Connector Type:	Receptacle, Outer Shroud Contacts
Number of Positions:	30
Pitch:	0.050" (1.27mm)
Number of Rows:	2
Mounting Type:	Through Hole
Features:	Board Lock
Contact Finish:	Gold
Contact Finish Thickness:	3.94µin (0.10µm)
Mated Stacking Heights:	18mm, 20mm, 24mm
Height Above Board:	0.642" (16.30mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 436

Shipped from

HK warehouse

Expected Shipping Date

Dec 14 - Dec 18 2025

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	$1.23000	$1.23
10	$1.07978	$10.7978
25	$1.01626	$25.4065
50	$0.97392	$48.696
100	$0.93157	$93.157
250	$0.84689	$211.7225
840	$0.74102	$622.4568
1680	$0.63516	$1067.0688
2520	$0.61399	$1547.2548
