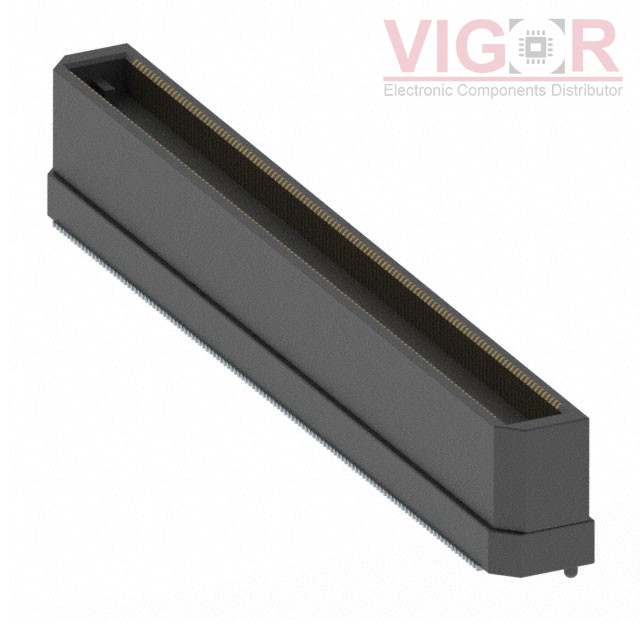

BTH-120-03-F-D-A-TR

Part No :: BTH-120-03-F-D-A-TR

Manufacturer: Samtec, Inc.

VIGOR # :: 3006030

Description: CONN HDR 240POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: BTH-120-03-F-D-A-TR PDF

Current price of BTH-120-03-F-D-A-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

BTH-120-03-F-D-A-TR Specifications

Type	Description
Series:	BTH
Package:	Tape & Reel (TR)
Part Status:	Active
Connector Type:	Header, Outer Shroud Contacts
Number of Positions:	240
Pitch:	0.020" (0.50mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Board Guide
Contact Finish:	Gold
Contact Finish Thickness:	3.00µin (0.076µm)
Mated Stacking Heights:	11mm
Height Above Board:	0.404" (10.27mm)

Please confirm the specifications of the products when ordering.
