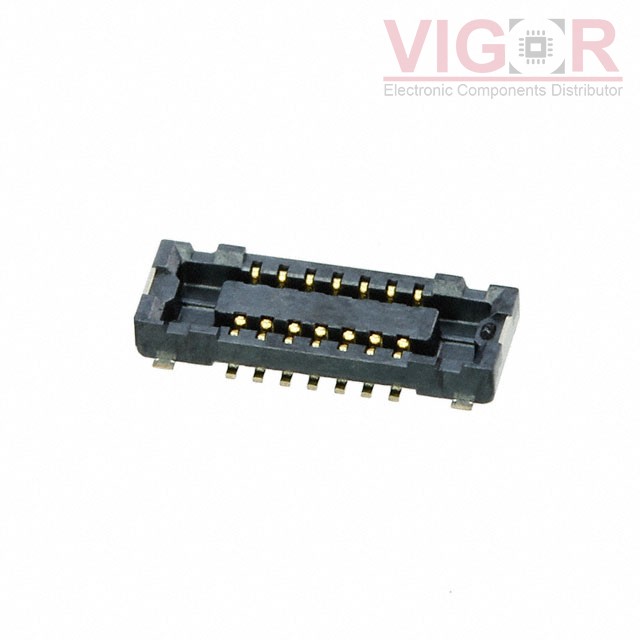

AXE114527A

Part No :: AXE114527A

Manufacturer: Panasonic

VIGOR # :: 3006327

Description: CONN SOCKET 14POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: AXE114527A PDF

Current price of AXE114527A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AXE114527A Specifications

Type	Description
Series:	A4US
Package:	Strip
Part Status:	Obsolete
Connector Type:	Socket, Center Strip Contacts
Number of Positions:	14
Pitch:	0.016" (0.40mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Solder Retention
Contact Finish:	Gold
Contact Finish Thickness:	-
Mated Stacking Heights:	0.8mm
Height Above Board:	0.030" (0.75mm)
