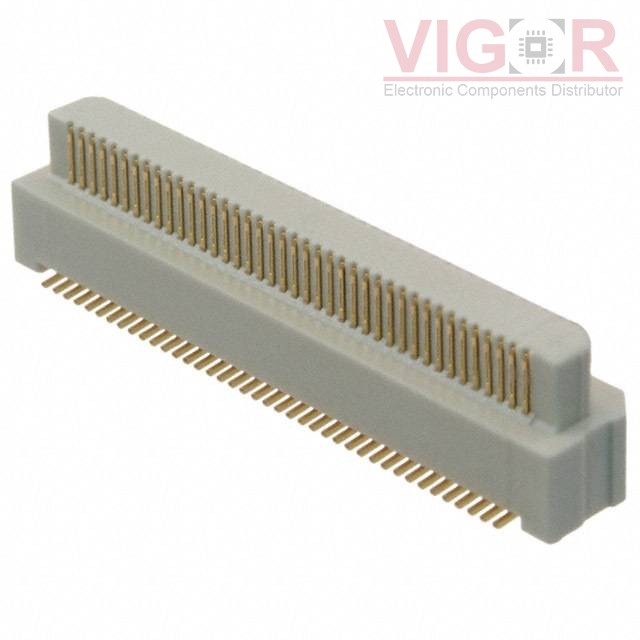

AXK6S70547YG

Part No :: AXK6S70547YG

Manufacturer: Panasonic

VIGOR # :: 3006726

Description: CONN HDR 70POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: AXK6S70547YG PDF

Current price of AXK6S70547YG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AXK6S70547YG Specifications

Type	Description
Series:	P5KS
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Header, Outer Shroud Contacts
Number of Positions:	70
Pitch:	0.020" (0.50mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	-
Contact Finish:	Gold
Contact Finish Thickness:	-
Mated Stacking Heights:	5mm, 5.5mm, 8mm
Height Above Board:	0.169" (4.30mm)

Please confirm the specifications of the products when ordering.
