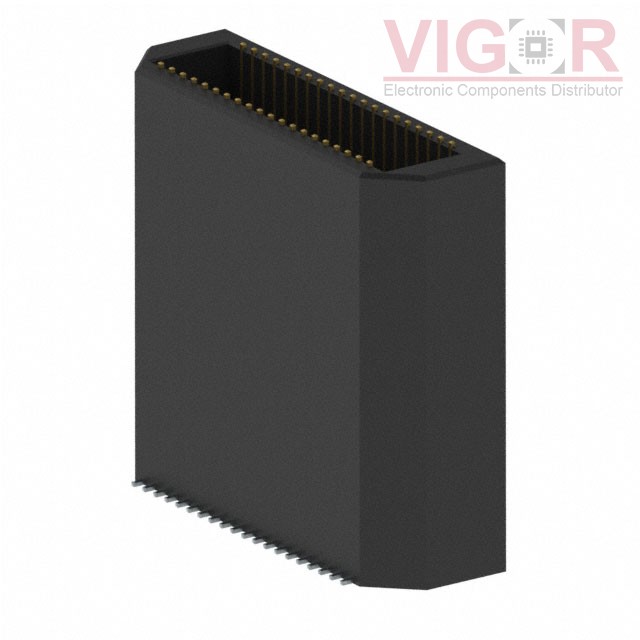

BTE-020-05-L-D

Part No :: BTE-020-05-L-D

Manufacturer: Samtec, Inc.

VIGOR # :: 3006805

Description: CONN HDR 40POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: BTE-020-05-L-D PDF

Current price of BTE-020-05-L-D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

BTE-020-05-L-D Specifications

Type	Description
Series:	BTE
Package:	Tray
Part Status:	Active
Connector Type:	Header, Outer Shroud Contacts
Number of Positions:	40
Pitch:	0.031" (0.80mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	-
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)
Mated Stacking Heights:	19.1mm
Height Above Board:	0.719" (18.26mm)
