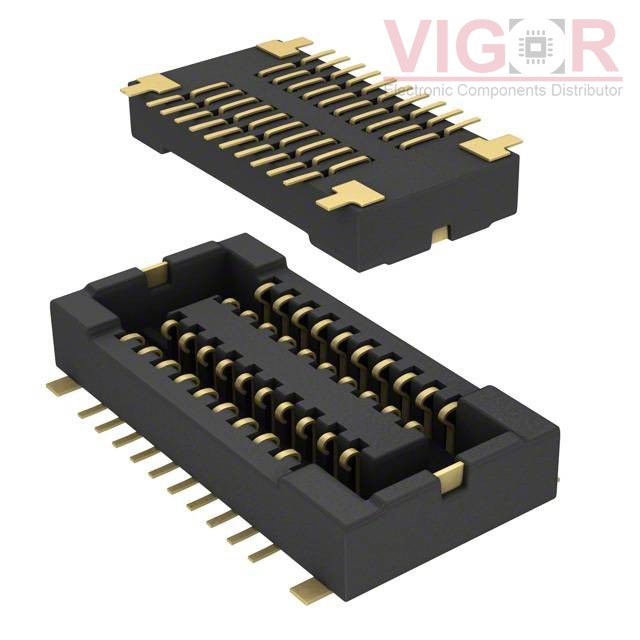

AXT520124

Part No :: AXT520124

Manufacturer: Panasonic

VIGOR # :: 3006825

Description: CONN SOCKET 20POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: AXT520124 PDF

Current price of AXT520124 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AXT520124 Specifications

Type	Description
Series:	F4S
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Socket, Outer Shroud Contacts
Number of Positions:	20
Pitch:	0.016" (0.40mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Solder Retention
Contact Finish:	Gold
Contact Finish Thickness:	-
Mated Stacking Heights:	1mm
Height Above Board:	0.038" (0.97mm)
