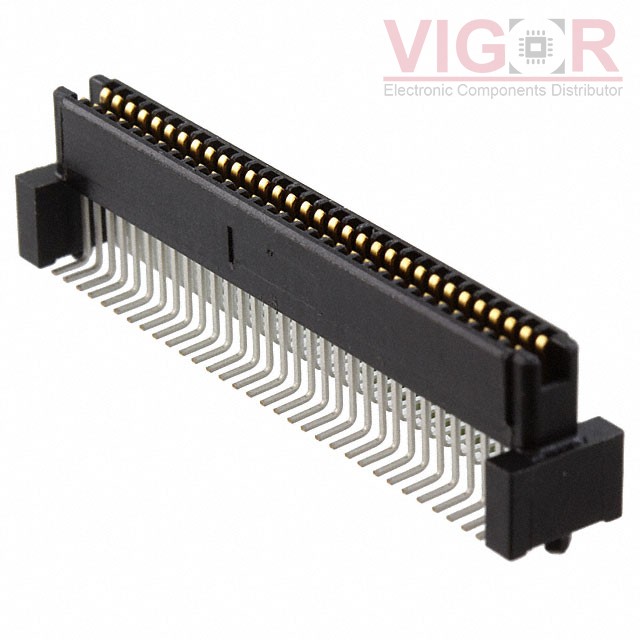

5120523-1

Part No :: 5120523-1

Manufacturer: TE Connectivity AMP Connectors

VIGOR # :: 3006906

Description: CONN RCPT 64POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: 5120523-1 PDF

Current price of 5120523-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

5120523-1 Specifications

Type	Description
Series:	Free Height (FH) IEEE 1386, PMC
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Receptacle, Outer Shroud Contacts
Number of Positions:	64
Pitch:	0.039" (1.00mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Board Guide
Contact Finish:	Gold
Contact Finish Thickness:	30.0µin (0.76µm)
Mated Stacking Heights:	13mm
Height Above Board:	0.330" (8.38mm)
