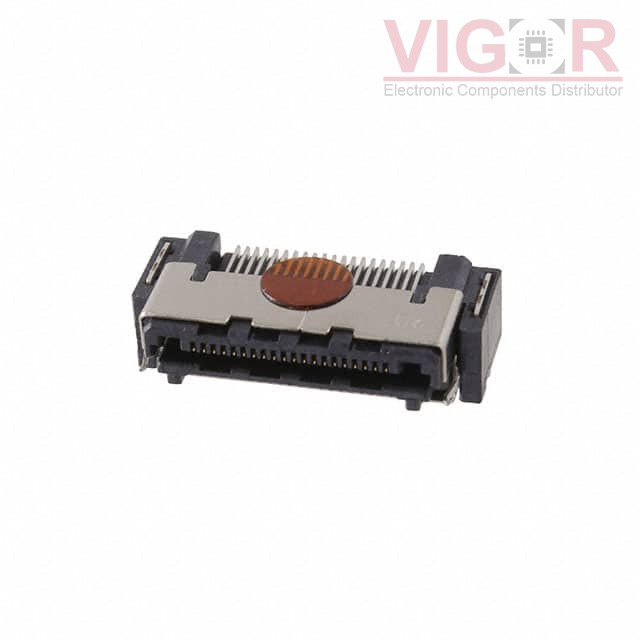

LSHM-120-01-F-RH-A-S-K-TR

Part No :: LSHM-120-01-F-RH-A-S-K-TR

Manufacturer: Samtec, Inc.

Description: CONN SELF-MATE 40P R/A SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: LSHM-120-01-F-RH-A-S-K-TR PDF

Availability: 316 pieces

Current price of LSHM-120-01-F-RH-A-S-K-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LSHM-120-01-F-RH-A-S-K-TR Specifications

Type	Description
Series:	Razor Beam™ LSHM
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Self Mating, Non-Gendered
Number of Positions:	40
Pitch:	0.020" (0.50mm)
Number of Rows:	2
Mounting Type:	Surface Mount, Right Angle, Reverse
Features:	Board Guide, Pick and Place, Shielded
Contact Finish:	Gold
Contact Finish Thickness:	3.00µin (0.076µm)
Mated Stacking Heights:	-
Height Above Board:	0.202" (5.13mm)

Please confirm the specifications of the products when ordering.
