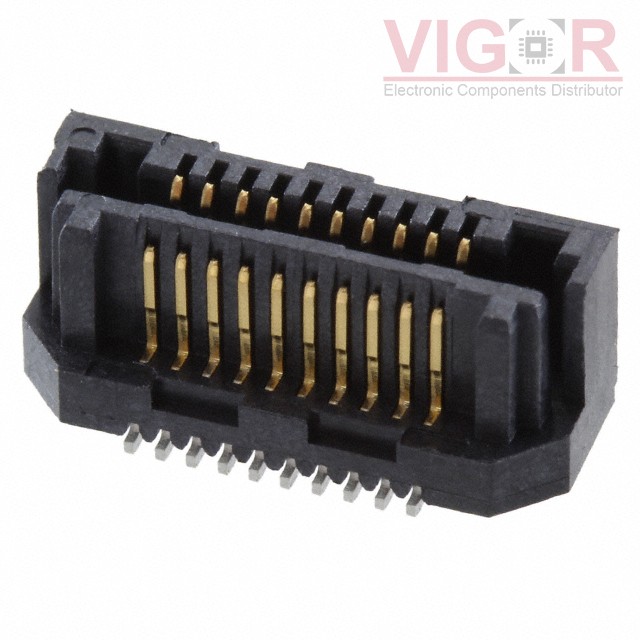

LSS-110-03-L-DV-A

Part No :: LSS-110-03-L-DV-A

Manufacturer: Samtec, Inc.

Description: CONN SELF-MATE 20POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: LSS-110-03-L-DV-A PDF

Availability: 35 pieces

Current price of LSS-110-03-L-DV-A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LSS-110-03-L-DV-A Specifications

Type	Description
Series:	Razor Beam™ LSS
Package:	Tube
Part Status:	Active
Connector Type:	Self Mating, Non-Gendered
Number of Positions:	20
Pitch:	0.025" (0.64mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Board Guide
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)
Mated Stacking Heights:	7mm, 8mm, 10mm
Height Above Board:	0.209" (5.30mm)
