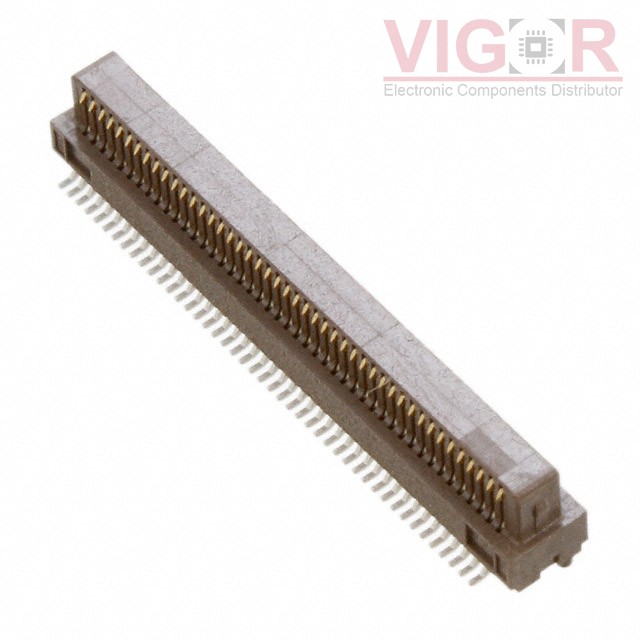

0545520902

Part No :: 0545520902

Manufacturer: Woodhead - Molex

VIGOR # :: 3007506

Description: CONN RCPT 90POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: 0545520902 PDF

Current price of 0545520902 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

0545520902 Specifications

Type	Description
Series:	SlimStack 54552
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Connector Type:	Receptacle, Center Strip Contacts
Number of Positions:	90
Pitch:	0.016" (0.40mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Board Guide
Contact Finish:	Gold
Contact Finish Thickness:	-
Mated Stacking Heights:	-
Height Above Board:	0.132" (3.35mm)

Please confirm the specifications of the products when ordering.
