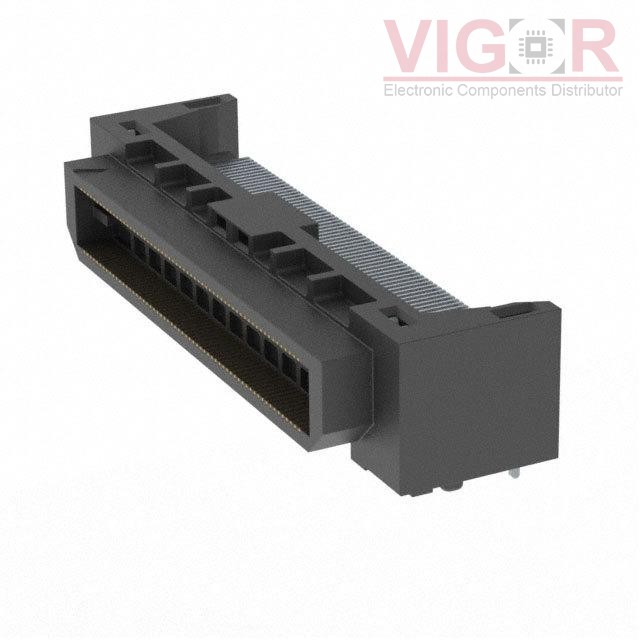

BTH-060-01-F-D-RA-WT-K

Part No :: BTH-060-01-F-D-RA-WT-K

Manufacturer: Samtec, Inc.

VIGOR # :: 3007614

Description: CONN HDR 120POS R/A SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: BTH-060-01-F-D-RA-WT-K PDF

Current price of BTH-060-01-F-D-RA-WT-K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

BTH-060-01-F-D-RA-WT-K Specifications

Type	Description
Series:	BTH
Package:	Tray
Part Status:	Active
Connector Type:	Header, Outer Shroud Contacts
Number of Positions:	120
Pitch:	0.020" (0.50mm)
Number of Rows:	2
Mounting Type:	Surface Mount, Right Angle
Features:	Solder Retention
Contact Finish:	Gold
Contact Finish Thickness:	3.00µin (0.076µm)
Mated Stacking Heights:	-
Height Above Board:	0.348" (8.84mm)
