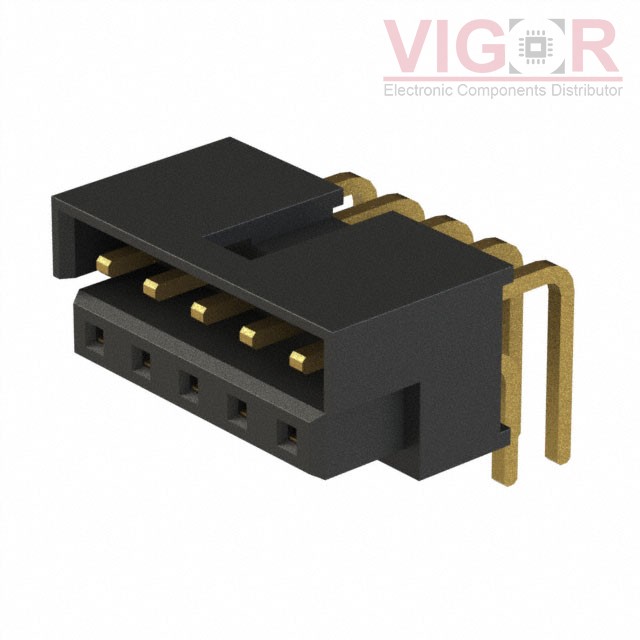

LS2-105-01-S-D-RA2-TR

Part No :: LS2-105-01-S-D-RA2-TR

Manufacturer: Samtec, Inc.

VIGOR # :: 3007708

Description: CONN SELF-MATE 10POS R/A GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: LS2-105-01-S-D-RA2-TR PDF

Current price of LS2-105-01-S-D-RA2-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LS2-105-01-S-D-RA2-TR Specifications

Type	Description
Series:	LS2
Package:	Tape & Reel (TR)
Part Status:	Active
Connector Type:	Self Mating, Non-Gendered
Number of Positions:	10
Pitch:	0.079" (2.00mm)
Number of Rows:	2
Mounting Type:	Through Hole, Right Angle
Features:	Latch Holder
Contact Finish:	Gold
Contact Finish Thickness:	30.0µin (0.76µm)
Mated Stacking Heights:	-
Height Above Board:	0.208" (5.28mm)
