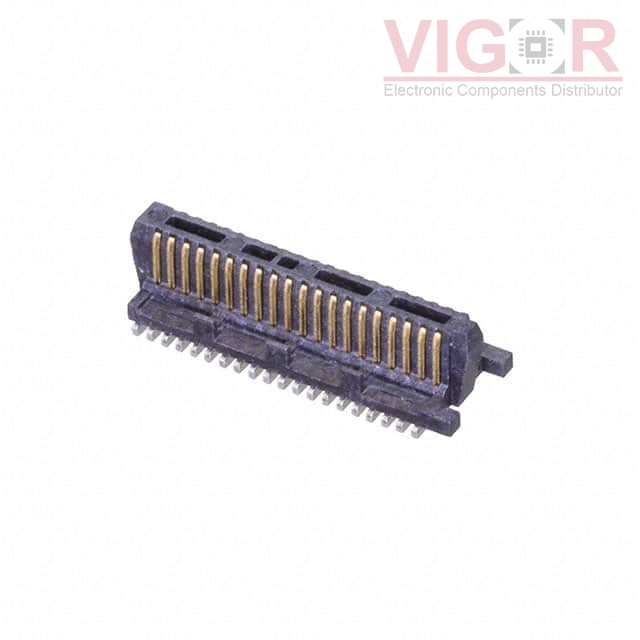

ST5-20-1.00-L-D-P-TR

Part No :: ST5-20-1.00-L-D-P-TR

Manufacturer: Samtec, Inc.

VIGOR # :: 3007743

Description: CONN HDR 40POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: ST5-20-1.00-L-D-P-TR PDF

Current price of ST5-20-1.00-L-D-P-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ST5-20-1.00-L-D-P-TR Specifications

Type	Description
Series:	Razor Beam™ ST5
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Header, Center Strip Contacts
Number of Positions:	40
Pitch:	0.020" (0.50mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Pick and Place
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)
Mated Stacking Heights:	4mm, 4.5mm
Height Above Board:	0.121" (3.07mm)

Please confirm the specifications of the products when ordering.
