BTH-060-09-F-D-A

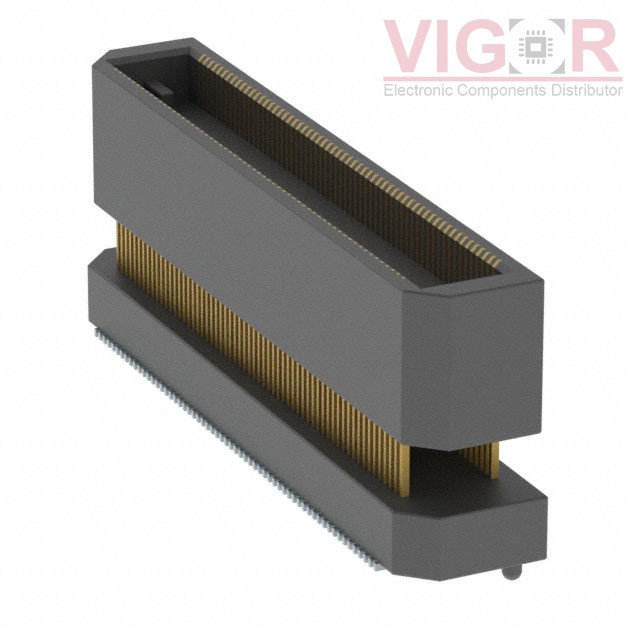

Image is for reference,
please contact us to get the real picture

Part No :: BTH-060-09-F-D-A

Manufacturer: Samtec, Inc.

Description: CONN HDR 120POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: BTH-060-09-F-D-A PDF

Availability: 0 pieces

Unit Price: ~~$10.68563~~

Current price of BTH-060-09-F-D-A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

BTH-060-09-F-D-A Specifications

Type	Description
Series:	BTH
Package:	Tube
Part Status:	Active
Connector Type:	Header, Outer Shroud Contacts
Number of Positions:	120
Pitch:	0.020" (0.50mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Board Guide
Contact Finish:	Gold
Contact Finish Thickness:	3.00µin (0.076µm)
Mated Stacking Heights:	14mm
Height Above Board:	0.522" (13.25mm)
