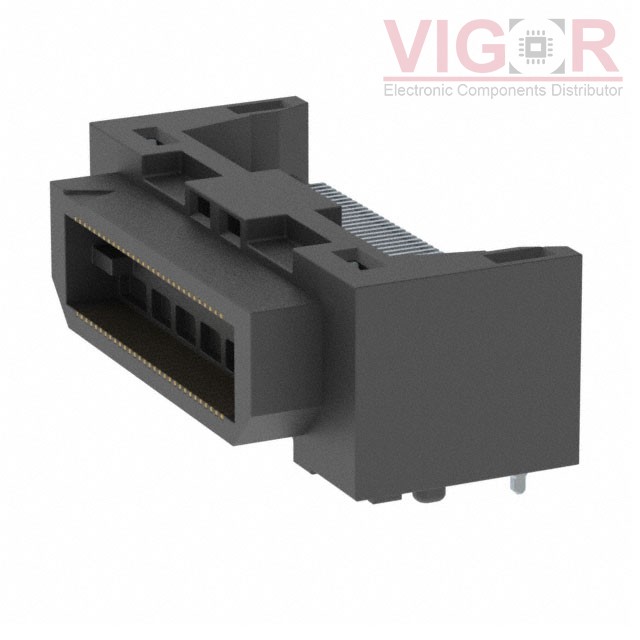

BTH-030-01-L-D-RA-WT

Part No :: BTH-030-01-L-D-RA-WT

Manufacturer: Samtec, Inc.

VIGOR # :: 3008018

Description: CONN HDR 60POS R/A SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: BTH-030-01-L-D-RA-WT PDF

Current price of BTH-030-01-L-D-RA-WT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

BTH-030-01-L-D-RA-WT Specifications

Type	Description
Series:	BTH
Package:	Tray
Part Status:	Active
Connector Type:	Header, Outer Shroud Contacts
Number of Positions:	60
Pitch:	0.020" (0.50mm)
Number of Rows:	2
Mounting Type:	Surface Mount, Right Angle
Features:	Solder Retention
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)
Mated Stacking Heights:	-
Height Above Board:	0.348" (8.84mm)

Please confirm the specifications of the products when ordering.
