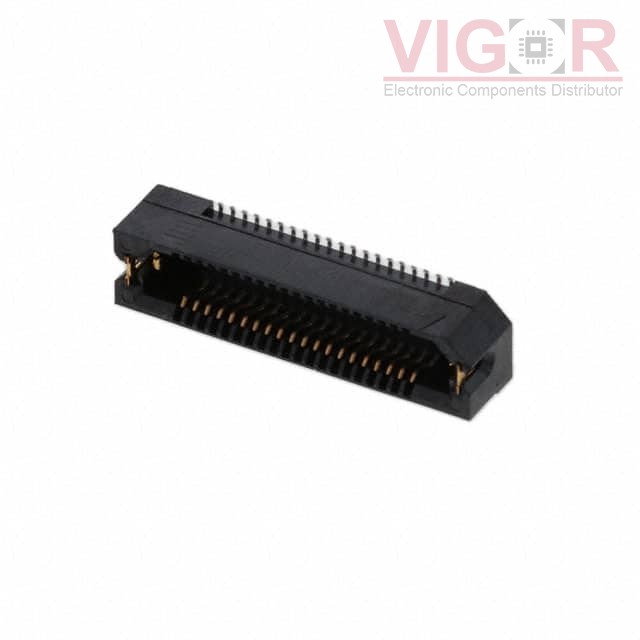

ERF8-020-05.0-S-DV-L-TR

Part No :: ERF8-020-05.0-S-DV-L-TR

Manufacturer: Samtec, Inc.

VIGOR # :: 3008050

Description: CONN SOCKET 40POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: ERF8-020-05.0-S-DV-L-TR PDF

Current price of ERF8-020-05.0-S-DV-L-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ERF8-020-05.0-S-DV-L-TR Specifications

Type	Description
Series:	Edge Rate™ ERF8
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Socket, Outer Shroud Contacts
Number of Positions:	40
Pitch:	0.031" (0.80mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Board Guide, Latches
Contact Finish:	Gold
Contact Finish Thickness:	30.0µin (0.76µm)
Mated Stacking Heights:	7mm, 10mm, 13mm, 14mm, 20mm
Height Above Board:	0.210" (5.33mm)
