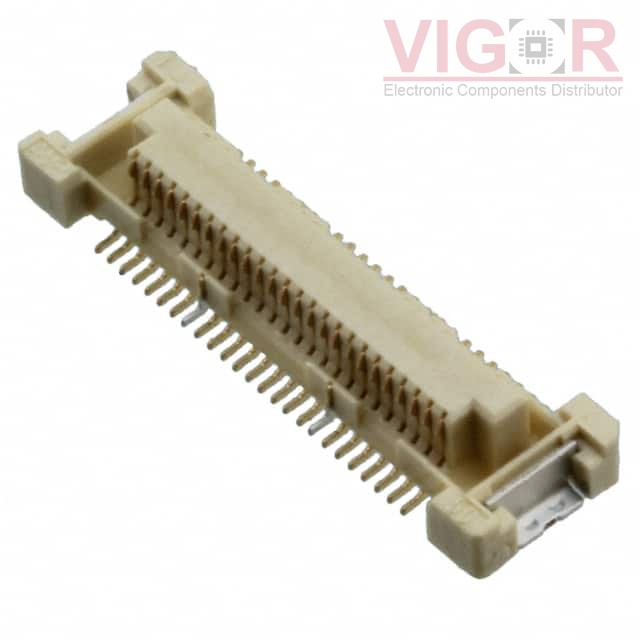

5316077-3

Part No :: 5316077-3

Manufacturer: TE Connectivity AMP Connectors

VIGOR # :: 3008100

Description: CONN RCPT 50POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: 5316077-3 PDF

Current price of 5316077-3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

5316077-3 Specifications

Type	Description
Series:	Free Height (FH)
Package:	Tray
Part Status:	Active
Connector Type:	Receptacle, Center Strip Contacts
Number of Positions:	50
Pitch:	0.024" (0.60mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Board Guide, Solder Retention
Contact Finish:	Gold
Contact Finish Thickness:	8.00µin (0.203µm)
Mated Stacking Heights:	4mm
Height Above Board:	0.128" (3.25mm)

Please confirm the specifications of the products when ordering.
