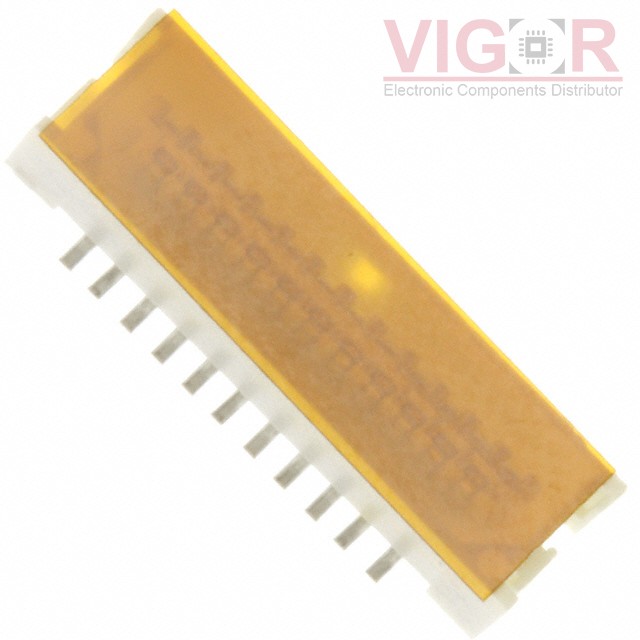

DF9A-23S-1V(22)

Part No :: DF9A-23S-1V(22)

Manufacturer: Hirose

VIGOR # :: 3008122

Description: CONN RCPT 23POS SMD TIN

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: DF9A-23S-1V(22) PDF

Current price of DF9A-23S-1V(22) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DF9A-23S-1V(22) Specifications

Type	Description
Series:	DF9
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Last Time Buy
Connector Type:	Receptacle, Outer Shroud Contacts
Number of Positions:	23
Pitch:	0.039" (1.00mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Board Guide
Contact Finish:	Tin
Contact Finish Thickness:	-
Mated Stacking Heights:	4.3mm
Height Above Board:	0.130" (3.30mm)

Please confirm the specifications of the products when ordering.
