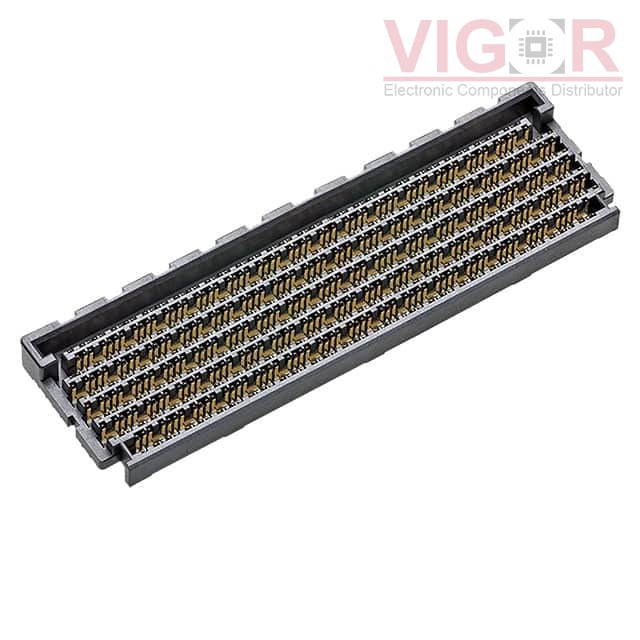

2093111115

Part No :: 2093111115

Manufacturer: Woodhead - Molex

VIGOR # :: 3008136

Description: CONN HD ARRAY RCPT 330P SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: 2093111115 PDF

Current price of 2093111115 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

2093111115 Specifications

Type	Description
Series:	Mirror Mezz 202828
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	High Density Array, Female
Number of Positions:	330
Pitch:	-
Number of Rows:	11
Mounting Type:	Surface Mount
Features:	Board Guide, Pick and Place
Contact Finish:	Gold
Contact Finish Thickness:	30.0µin (0.76µm)
Mated Stacking Heights:	5mm
Height Above Board:	0.183" (4.65mm)

Please confirm the specifications of the products when ordering.
