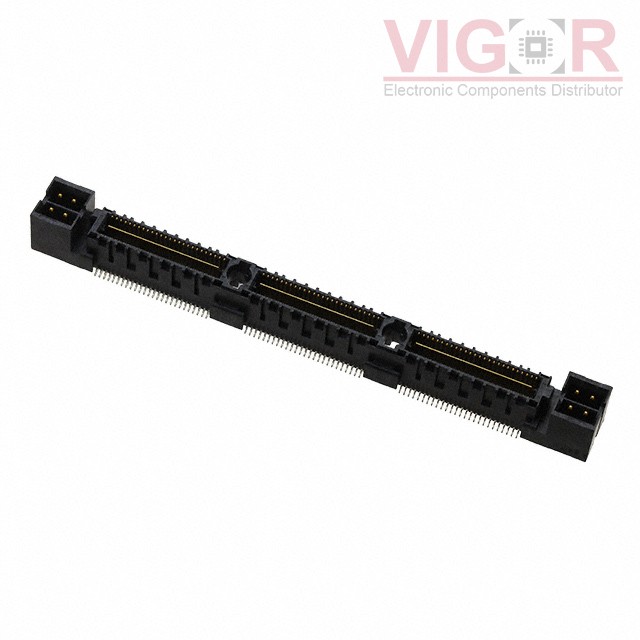

QMS-078-06.75-L-D-PC4

Part No :: QMS-078-06.75-L-D-PC4

Manufacturer: Samtec, Inc.

VIGOR # :: 3008351

Description: CONN HDR 156POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: QMS-078-06.75-L-D-PC4 PDF

Current price of QMS-078-06.75-L-D-PC4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

QMS-078-06.75-L-D-PC4 Specifications

Type	Description
Series:	Power Q2™ QMS
Package:	Tray
Part Status:	Active
Connector Type:	Header, Outer Shroud Contacts
Number of Positions:	156
Pitch:	0.025" (0.64mm)
Number of Rows:	2
Mounting Type:	Surface Mount, Through Hole
Features:	Board Guide, Ground Bus (Plane), Power Pins (8)
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)
Mated Stacking Heights:	11mm, 13mm
Height Above Board:	0.265" (6.73mm)

Please confirm the specifications of the products when ordering.
