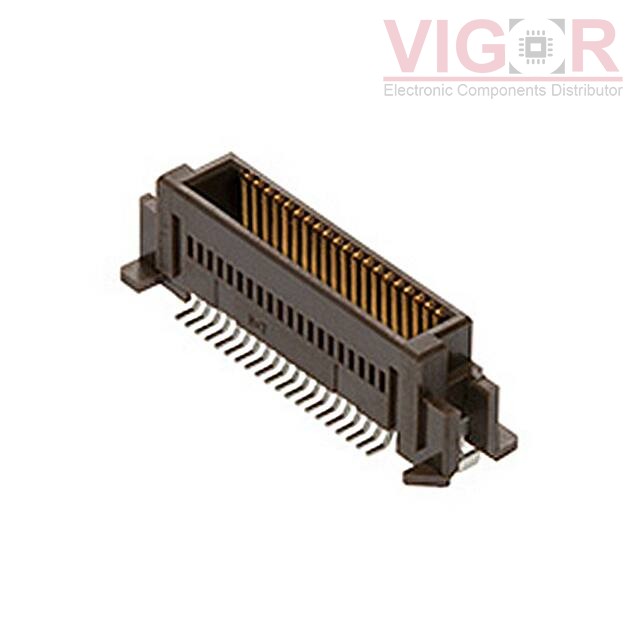

0536250274

Part No :: 0536250274

Manufacturer: Woodhead - Molex

VIGOR # :: 3008535

Description: 0.635 BTB PLGHSGCOVERASSY20CKTEM

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: 0536250274 PDF

Current price of 0536250274 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

0536250274 Specifications

Type	Description
Series:	SlimStack 53625
Package:	Tape & Reel (TR)--
Part Status:	Active
Connector Type:	Plug, Outer Shroud Contacts
Number of Positions:	20
Pitch:	0.025" (0.64mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Board Guide, Solder Retention
Contact Finish:	Gold
Contact Finish Thickness:	100.0µin (2.54µm)
Mated Stacking Heights:	7mm, 13mm
Height Above Board:	0.236" (6.00mm)

Please confirm the specifications of the products when ordering.
