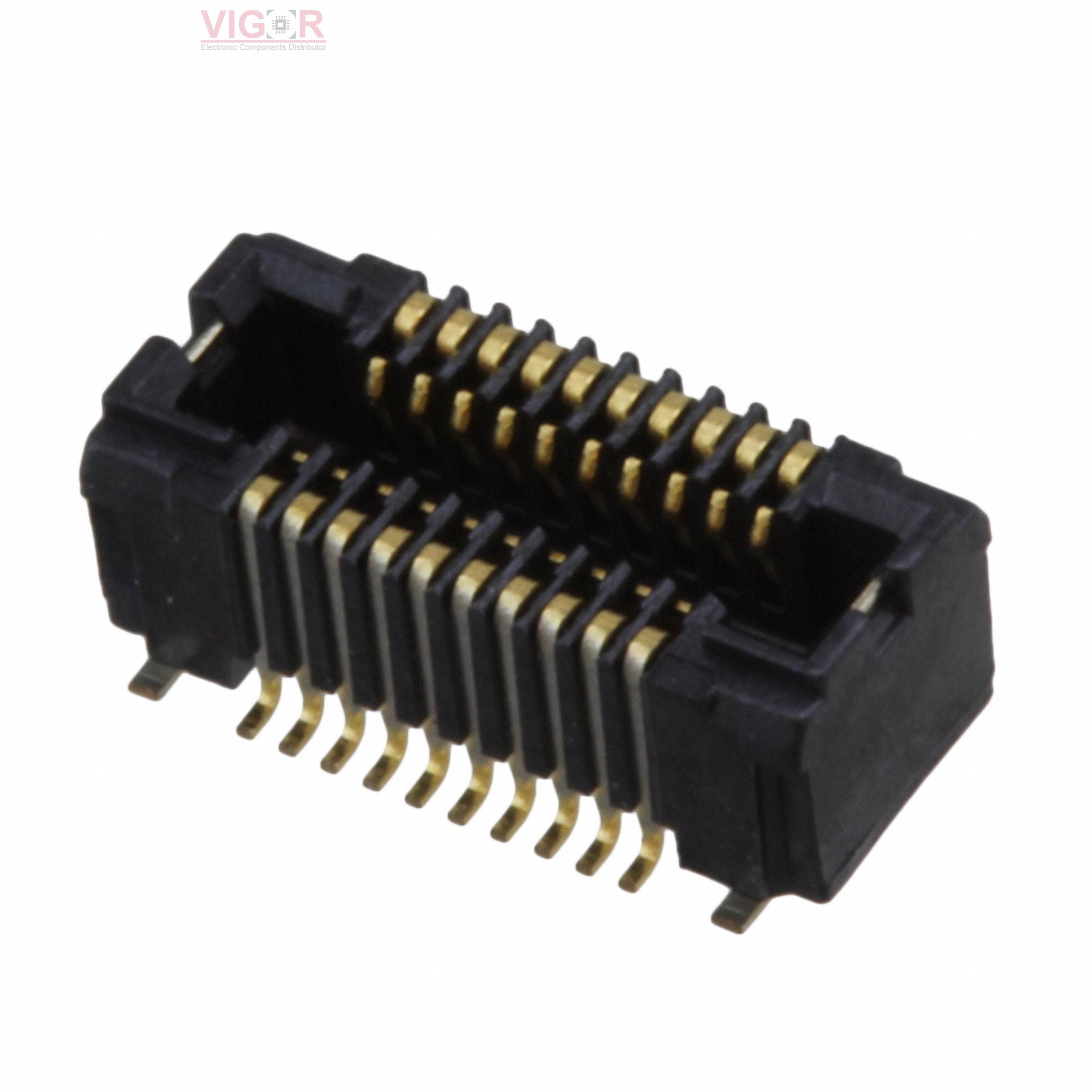

AXT320224

Part No :: AXT320224

Manufacturer: Panasonic

VIGOR # :: 3008722

Description: CONN SOCKET 20POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: AXT320224 PDF

Current price of AXT320224 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AXT320224 Specifications

Type	Description
Series:	P4S
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Socket, Outer Shroud Contacts
Number of Positions:	20
Pitch:	0.016" (0.40mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Solder Retention
Contact Finish:	Gold
Contact Finish Thickness:	-
Mated Stacking Heights:	2.5mm, 3mm
Height Above Board:	0.096" (2.45mm)
