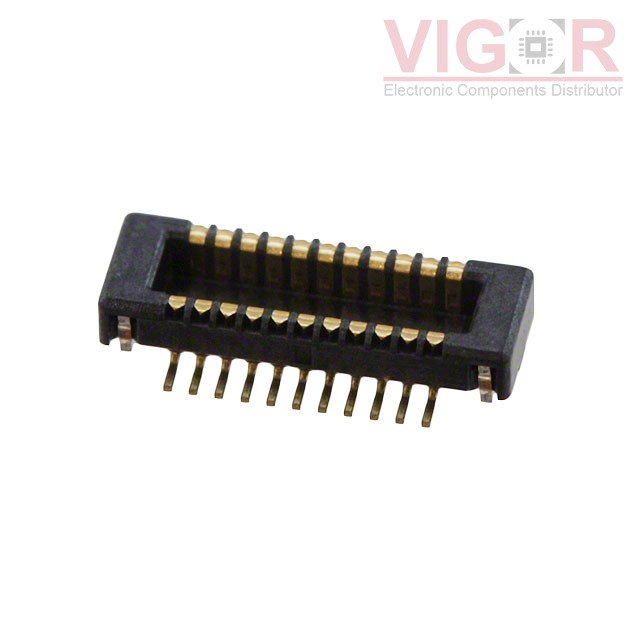

0559092274

Part No :: 0559092274

Manufacturer: Woodhead - Molex

VIGOR # :: 3009020

Description: CONN PLUG 22POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: 0559092274 PDF

Current price of 0559092274 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

0559092274 Specifications

Type	Description
Series:	SlimStack 55909
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Plug, Outer Shroud Contacts
Number of Positions:	22
Pitch:	0.016" (0.40mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Solder Retention
Contact Finish:	Gold
Contact Finish Thickness:	8.00µin (0.203µm)
Mated Stacking Heights:	1.5mm
Height Above Board:	0.045" (1.14mm)

Please confirm the specifications of the products when ordering.
