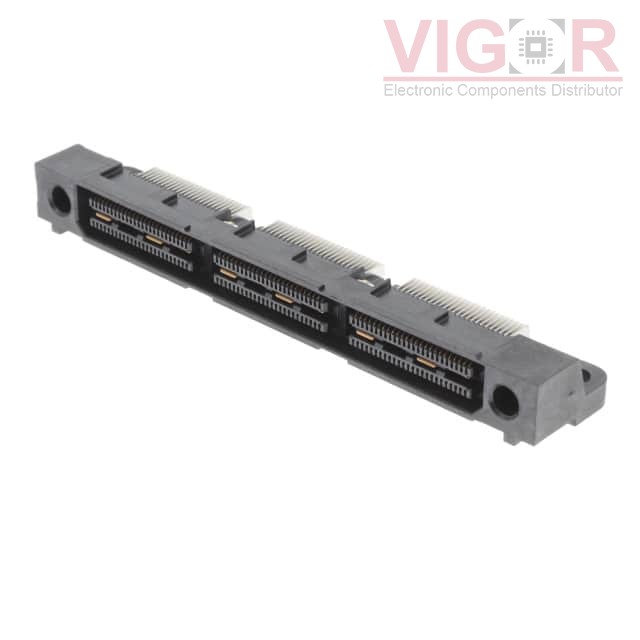

QSS-075-01-L-D-RA-WT

Part No :: QSS-075-01-L-D-RA-WT

Manufacturer: Samtec, Inc.

VIGOR # :: 3009100

Description: CONN SOCKET 150POS R/A SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: QSS-075-01-L-D-RA-WT PDF

Current price of QSS-075-01-L-D-RA-WT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

QSS-075-01-L-D-RA-WT Specifications

Type	Description
Series:	Q Strip® QSS
Package:	Tray
Part Status:	Active
Connector Type:	Socket, Center Strip Contacts
Number of Positions:	150
Pitch:	0.025" (0.64mm)
Number of Rows:	2
Mounting Type:	Surface Mount, Right Angle
Features:	Ground Bus (Plane), Solder Retention
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)
Mated Stacking Heights:	-
Height Above Board:	0.328" (8.33mm)
