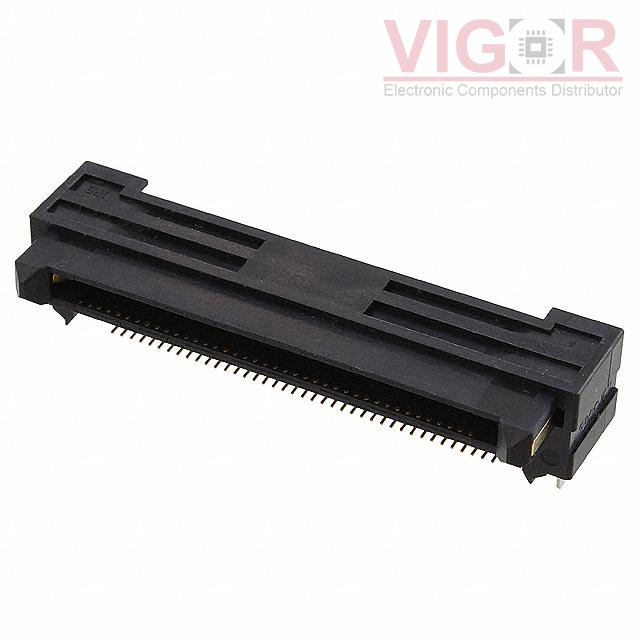

FX18-80P-0.8SH

Part No :: FX18-80P-0.8SH

Manufacturer: Hirose

VIGOR # :: 3009195

Description: CONN HDR 80POS R/A SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: FX18-80P-0.8SH PDF

Current price of FX18-80P-0.8SH is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FX18-80P-0.8SH Specifications

Type	Description
Series:	FunctionMax™ FX18
Package:	Tray
Part Status:	Active
Connector Type:	Header, Outer Shroud Contacts
Number of Positions:	80
Pitch:	0.031" (0.80mm)
Number of Rows:	2
Mounting Type:	Surface Mount, Right Angle
Features:	Board Guide
Contact Finish:	Gold
Contact Finish Thickness:	3.94µin (0.10µm)
Mated Stacking Heights:	-
Height Above Board:	0.374" (9.50mm)

Please confirm the specifications of the products when ordering.
