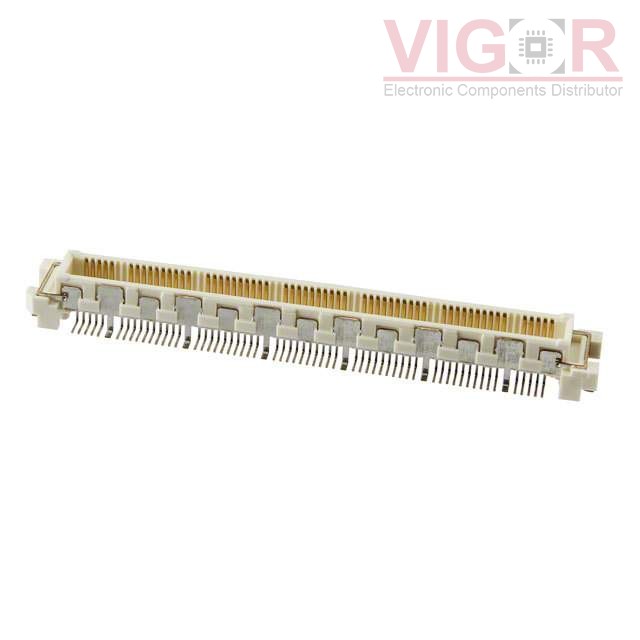

FX10A-120P/12-SV1(91)

Part No :: FX10A-120P/12-SV1(91)

Manufacturer: Hirose

VIGOR # :: 3009482

Description: CONN HDR 120POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: FX10A-120P/12-SV1(91) PDF

Current price of FX10A-120P/12-SV1(91) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FX10A-120P/12-SV1(91) Specifications

Type	Description
Series:	FunctionMax™ FX10
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Header, Outer Shroud Contacts
Number of Positions:	120
Pitch:	0.020" (0.50mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Board Guide, Ground Plate, Solder Retention
Contact Finish:	Gold
Contact Finish Thickness:	3.94µin (0.10µm)
Mated Stacking Heights:	5mm
Height Above Board:	0.177" (4.50mm)

Please confirm the specifications of the products when ordering.
