AX01R100HAYBR600

Part No :: AX01R100HAYBR600

Manufacturer: JAE Electronics

VIGOR # :: 3009656

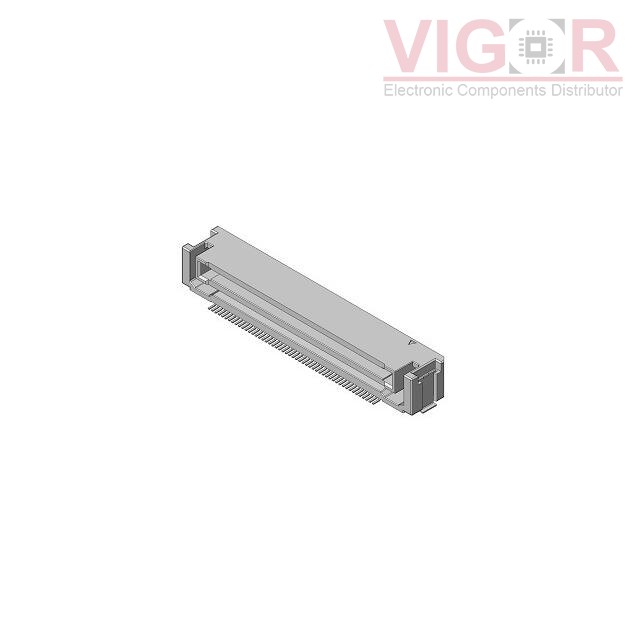

Description: RIGID SIDE B2B CONNECTOR, RIGHT

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: AX01R100HAYBR600 PDF

Country of origin: Confirming

Date code: TBC

AX01R100HAYBR600 Specifications

Type	Description
Series:	AX01
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Plug, Outer Shroud Contacts
Number of Positions:	100
Pitch:	0.025" (0.64mm)
Number of Rows:	2
Mounting Type:	Surface Mount, Right Angle
Features:	Board Guide, Solder Retention
Contact Finish:	Gold
Contact Finish Thickness:	3.94µin (0.10µm)
Mated Stacking Heights:	-
Height Above Board:	0.260" (6.60mm)
