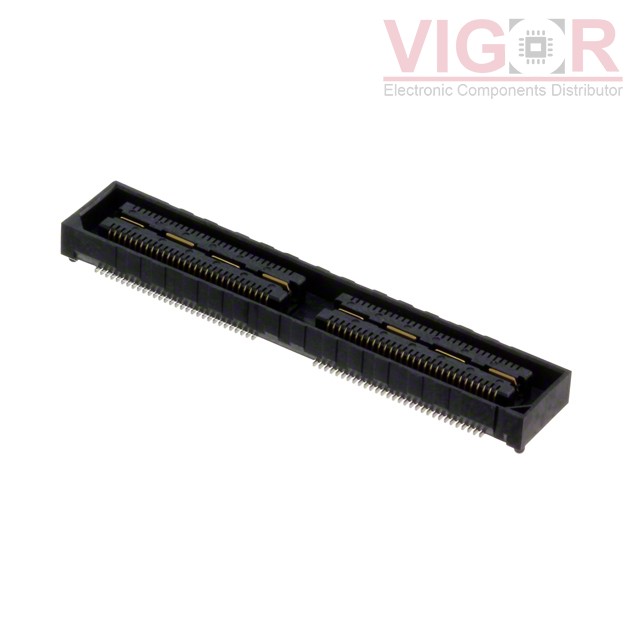

QSH-060-01-L-D-A-K-TR

Image is for reference,
please contact us to get the real picture

Part No :: QSH-060-01-L-D-A-K-TR

Manufacturer: Samtec, Inc.

Description: CONN RCPT 120POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: QSH-060-01-L-D-A-K-TR PDF

Availability: 4605 pieces

Unit Price: ~~$12.17000~~

Current price of QSH-060-01-L-D-A-K-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

QSH-060-01-L-D-A-K-TR Specifications

Type	Description
Series:	Q Strip® QSH
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Receptacle, Center Strip Contacts
Number of Positions:	120
Pitch:	0.020" (0.50mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Board Guide, Ground Bus (Plane), Pick and Place
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)
Mated Stacking Heights:	5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm
Height Above Board:	0.128" (3.25mm)

Please confirm the specifications of the products when ordering.
