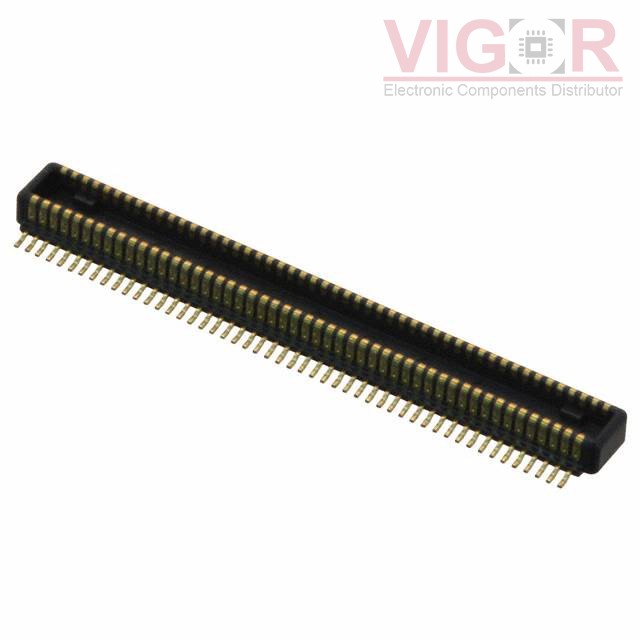

AXK800145WG

Part No :: AXK800145WG

Manufacturer: Panasonic

VIGOR # :: 3009777

Description: CONN HDR 100POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: AXK800145WG PDF

Current price of AXK800145WG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AXK800145WG Specifications

Type	Description
Series:	P4
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Not For New Designs
Connector Type:	Header, Outer Shroud Contacts
Number of Positions:	100
Pitch:	0.016" (0.40mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	-
Contact Finish:	Gold
Contact Finish Thickness:	-
Mated Stacking Heights:	1.5mm, 2mm, 2.5mm
Height Above Board:	0.052" (1.32mm)

Please confirm the specifications of the products when ordering.
