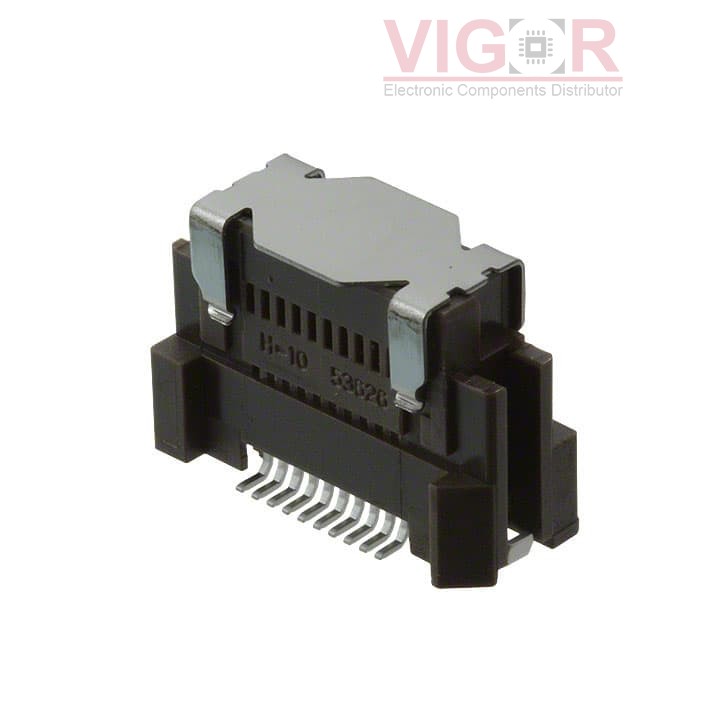

0536270274

Part No :: 0536270274

Manufacturer: Woodhead - Molex

VIGOR # :: 3009971

Description: CONN PLUG 20POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: 0536270274 PDF

Current price of 0536270274 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

0536270274 Specifications

Type	Description
Series:	SlimStack 53627
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Plug, Outer Shroud Contacts
Number of Positions:	20
Pitch:	0.025" (0.64mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Board Guide, Solder Retention
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)
Mated Stacking Heights:	10mm, 16mm
Height Above Board:	0.354" (9.00mm)

Please confirm the specifications of the products when ordering.
