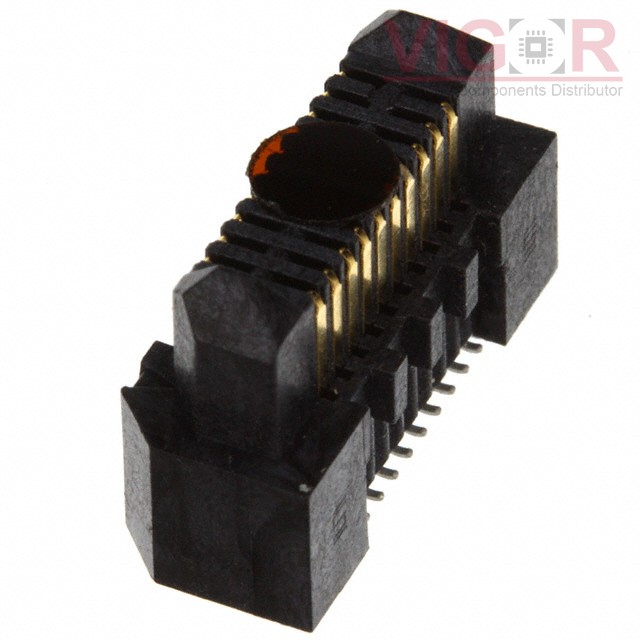

ERM8-010-05.0-S-DV-K-TR

Part No :: ERM8-010-05.0-S-DV-K-TR

Manufacturer: Samtec, Inc.

VIGOR # :: 3010060

Description: CONN HDR 20POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: ERM8-010-05.0-S-DV-K-TR PDF

Current price of ERM8-010-05.0-S-DV-K-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ERM8-010-05.0-S-DV-K-TR Specifications

Type	Description
Series:	Edge Rate™ ERM8
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Header, Center Strip Contacts
Number of Positions:	20
Pitch:	0.031" (0.80mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Board Guide, Pick and Place
Contact Finish:	Gold
Contact Finish Thickness:	30.0µin (0.76µm)
Mated Stacking Heights:	10mm, 12mm, 15mm
Height Above Board:	0.351" (8.91mm)
