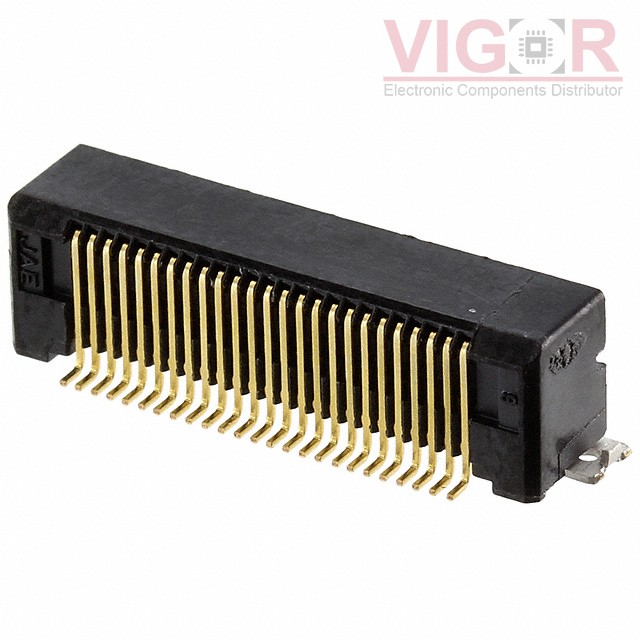

WR-50P-HF-HD-A1E

Part No :: WR-50P-HF-HD-A1E

Manufacturer: JAE Electronics

VIGOR # :: 3010083

Description: CONN PLUG 50POS R/A SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: WR-50P-HF-HD-A1E PDF

Current price of WR-50P-HF-HD-A1E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

WR-50P-HF-HD-A1E Specifications

Type	Description
Series:	WR
Package:	Strip
Part Status:	Active
Connector Type:	Plug, Outer Shroud Contacts
Number of Positions:	50
Pitch:	0.020" (0.50mm)
Number of Rows:	2
Mounting Type:	Surface Mount, Right Angle
Features:	Solder Retention
Contact Finish:	Gold
Contact Finish Thickness:	3.94µin (0.10µm)
Mated Stacking Heights:	-
Height Above Board:	0.185" (4.70mm)
