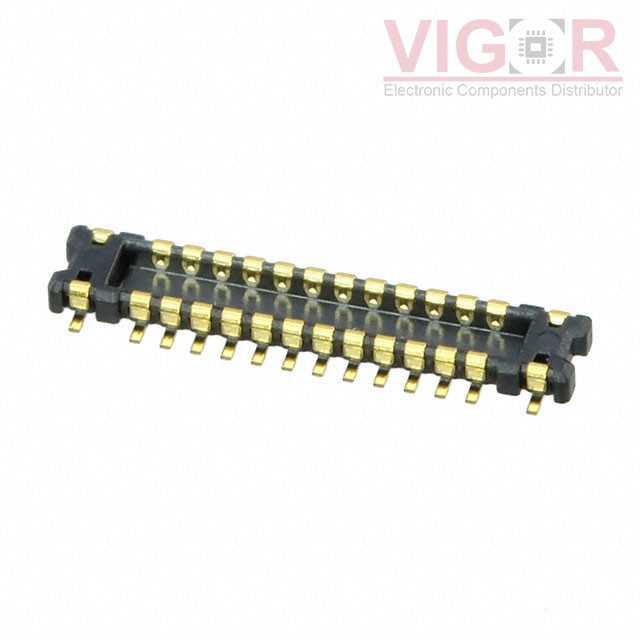

AXG224224A

Part No :: AXG224224A

Manufacturer: Panasonic

VIGOR # :: 3010279

Description: CONN HDR 24POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: AXG224224A PDF

Current price of AXG224224A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AXG224224A Specifications

Type	Description
Series:	S35
Package:	Strip
Part Status:	Active
Connector Type:	Header, Outer Shroud Contacts
Number of Positions:	24
Pitch:	0.014" (0.35mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Solder Retention
Contact Finish:	Gold
Contact Finish Thickness:	3.94µin (0.10µm)
Mated Stacking Heights:	0.8mm
Height Above Board:	0.026" (0.65mm)
