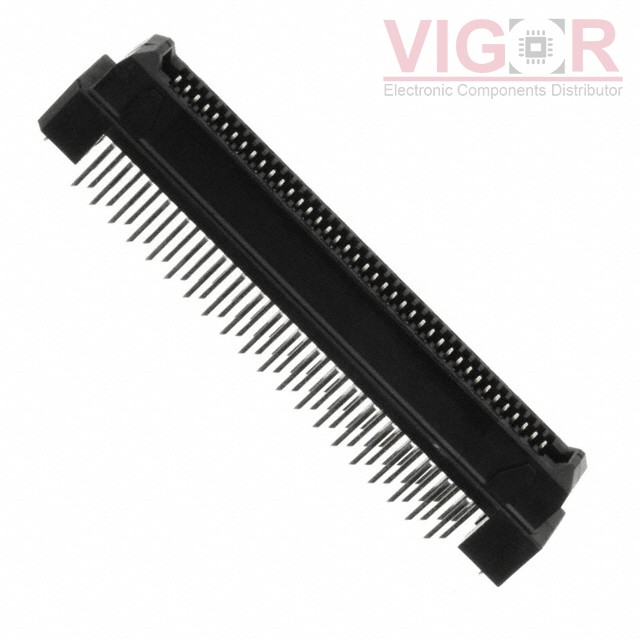

TX24-80R-10ST-H1E

Part No :: TX24-80R-10ST-H1E

Manufacturer: JAE Electronics

VIGOR # :: 3010301

Description: CONN RCPT 80POS VERT GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: TX24-80R-10ST-H1E PDF

Country of origin: -

Date code: -

TX24-80R-10ST-H1E Specifications

Type	Description
Series:	TX24
Package:	Tray
Part Status:	Active
Connector Type:	Receptacle, Outer Shroud Contacts
Number of Positions:	80
Pitch:	0.050" (1.27mm)
Number of Rows:	2
Mounting Type:	Through Hole
Features:	Board Lock
Contact Finish:	Gold
Contact Finish Thickness:	3.94µin (0.10µm)
Mated Stacking Heights:	16mm, 18mm, 22mm
Height Above Board:	0.563" (14.30mm)
