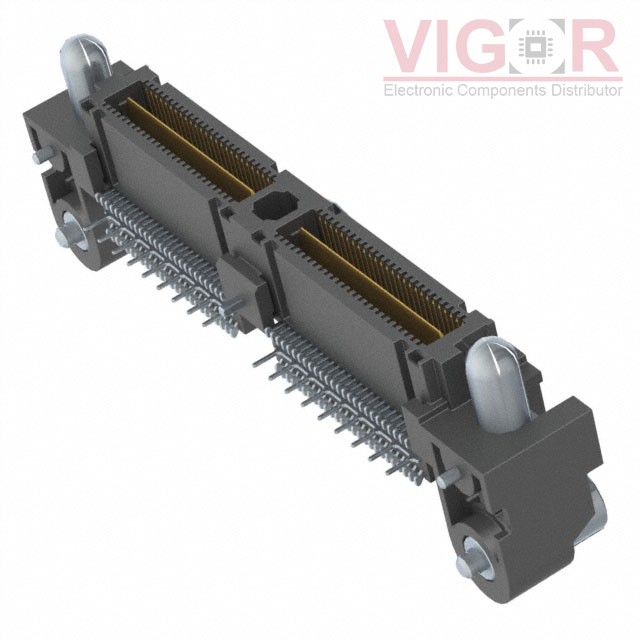

QMS-052-01-L-D-RA-MG

Part No :: QMS-052-01-L-D-RA-MG

Manufacturer: Samtec, Inc.

VIGOR # :: 3010313

Description: CONN HDR 104POS R/A GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: QMS-052-01-L-D-RA-MG PDF

Current price of QMS-052-01-L-D-RA-MG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

QMS-052-01-L-D-RA-MG Specifications

Type	Description
Series:	Power Q2™ QMS
Package:	Tray
Part Status:	Active
Connector Type:	Header, Outer Shroud Contacts
Number of Positions:	104
Pitch:	0.025" (0.64mm)
Number of Rows:	2
Mounting Type:	Surface Mount, Right Angle; Through Hole
Features:	Ground Bus (Plane), Mating Guide
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)
Mated Stacking Heights:	-
Height Above Board:	0.320" (8.12mm)
