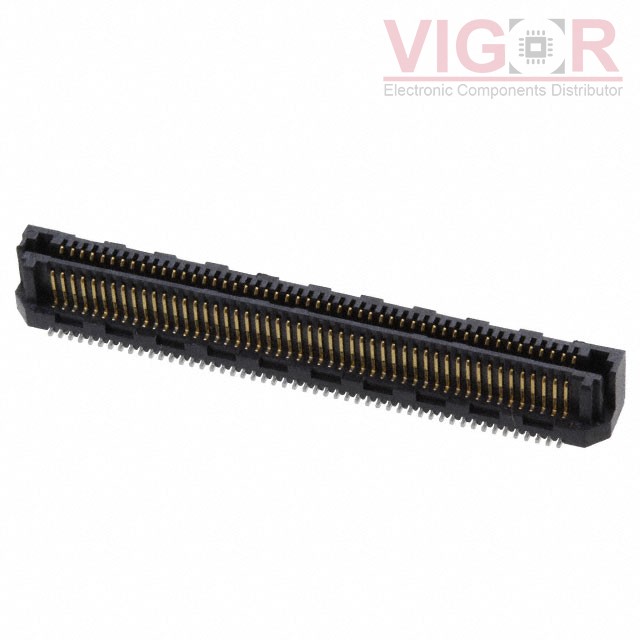

LSS-150-01-L-DV-A

Part No :: LSS-150-01-L-DV-A

Manufacturer: Samtec, Inc.

VIGOR # :: 3010352

Description: CONN SELF-MATE 100POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: LSS-150-01-L-DV-A PDF

Current price of LSS-150-01-L-DV-A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LSS-150-01-L-DV-A Specifications

Type	Description
Series:	Razor Beam™ LSS
Package:	Tube
Part Status:	Active
Connector Type:	Self Mating, Non-Gendered
Number of Positions:	100
Pitch:	0.025" (0.64mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Board Guide
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)
Mated Stacking Heights:	6mm, 7mm, 9mm
Height Above Board:	0.169" (4.30mm)
