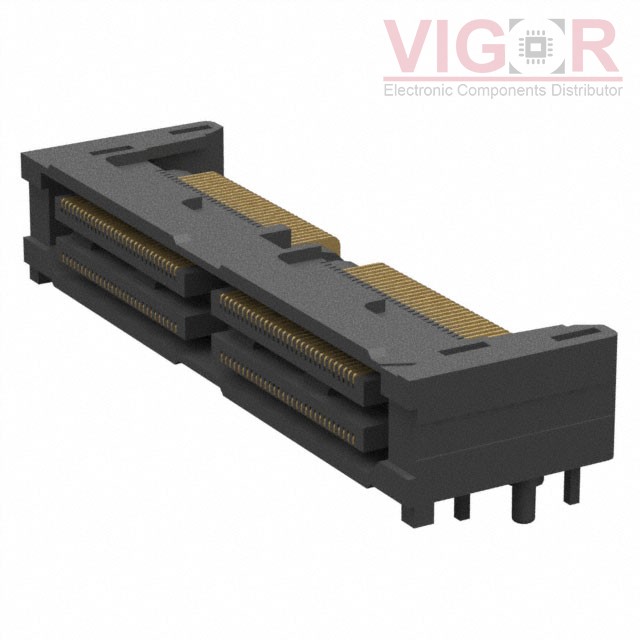

QSH-060-01-F-D-RA

Part No :: QSH-060-01-F-D-RA

Manufacturer: Samtec, Inc.

VIGOR # :: 3010469

Description: CONN RCPT 120POS R/A SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: QSH-060-01-F-D-RA PDF

Current price of QSH-060-01-F-D-RA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

QSH-060-01-F-D-RA Specifications

Type	Description
Series:	Q Strip® QSH
Package:	Tray
Part Status:	Active
Connector Type:	Receptacle, Center Strip Contacts
Number of Positions:	120
Pitch:	0.020" (0.50mm)
Number of Rows:	2
Mounting Type:	Surface Mount, Right Angle
Features:	Ground Bus (Plane)
Contact Finish:	Gold
Contact Finish Thickness:	3.00µin (0.076µm)
Mated Stacking Heights:	-
Height Above Board:	0.333" (8.45mm)
