0465564745

Part No :: 0465564745

Manufacturer: Woodhead - Molex

VIGOR # :: 3010870

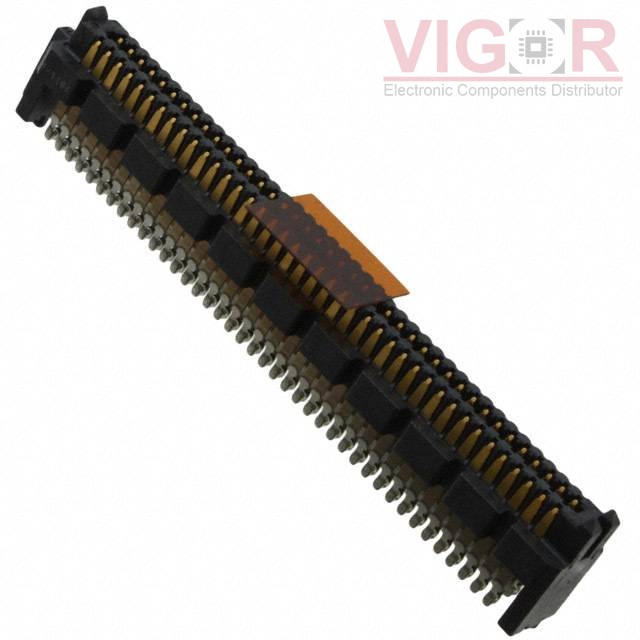

Description: CONN HD ARRAY PLUG 160P SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: 0465564745 PDF

Current price of 0465564745 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

0465564745 Specifications

Type	Description
Series:	SEARAY 46556
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	High Density Array, Male
Number of Positions:	160
Pitch:	0.050" (1.27mm)
Number of Rows:	4
Mounting Type:	Surface Mount
Features:	Board Guide
Contact Finish:	Gold
Contact Finish Thickness:	30.0µin (0.76µm)
Mated Stacking Heights:	12mm, 13mm, 13.5mm, 14.5mm, 15mm
Height Above Board:	0.421" (10.70mm)

Please confirm the specifications of the products when ordering.
