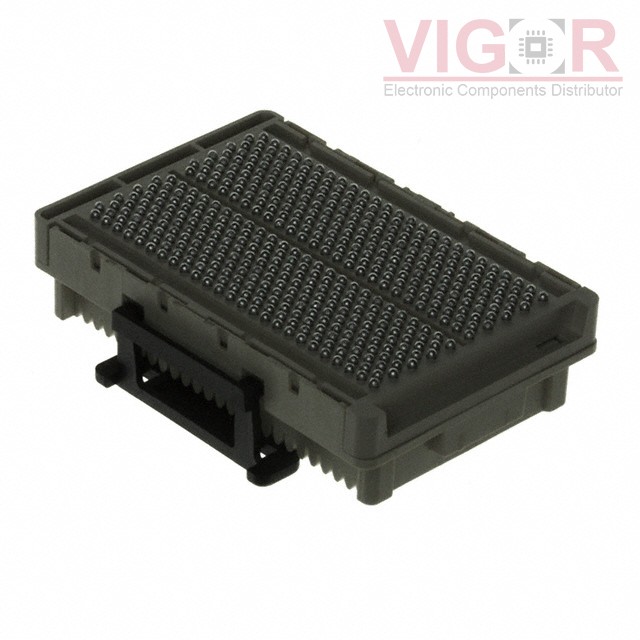

5-1761615-5

Part No :: 5-1761615-5

Manufacturer: TE Connectivity AMP Connectors

VIGOR # :: 3010916

Description: CONN DIFF ARRAY RCPT 200POS SMD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: 5-1761615-5 PDF

Current price of 5-1761615-5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

5-1761615-5 Specifications

Type	Description
Series:	STEP-Z
Package:	Tray
Part Status:	Active
Connector Type:	Differential Pair Array, Female
Number of Positions:	200 Signal (100 Pair)
Pitch:	0.051" (1.30mm)
Number of Rows:	18
Mounting Type:	Surface Mount
Features:	-
Contact Finish:	Gold
Contact Finish Thickness:	30.0µin (0.76µm)
Mated Stacking Heights:	15mm, 17mm, 18mm, 20mm, 25mm, 30mm
Height Above Board:	0.419" (10.64mm)
