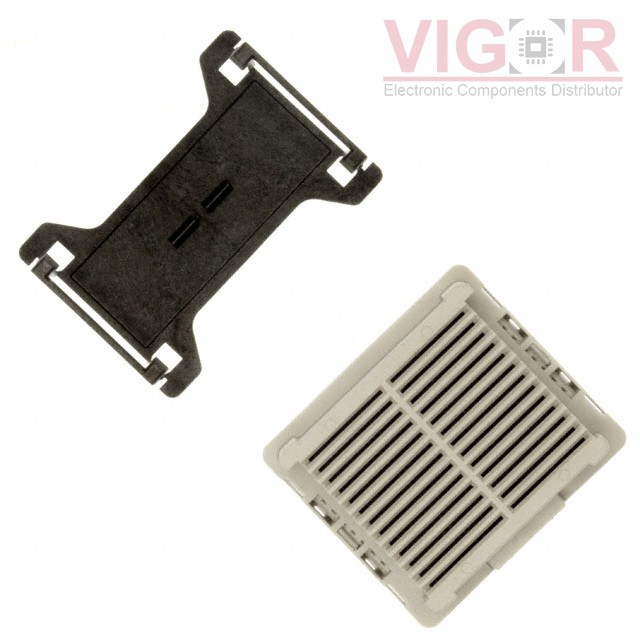

5-1761613-5

Part No :: 5-1761613-5

Manufacturer: TE Connectivity AMP Connectors

VIGOR # :: 3011051

Description: CONN DIFF ARRAY RCPT 104POS SMD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: 5-1761613-5 PDF

Current price of 5-1761613-5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

5-1761613-5 Specifications

Type	Description
Series:	STEP-Z
Package:	Tray
Part Status:	Active
Connector Type:	Differential Pair Array, Female
Number of Positions:	104 Signal (52 Pair)
Pitch:	0.051" (1.30mm)
Number of Rows:	18
Mounting Type:	Surface Mount
Features:	-
Contact Finish:	Gold
Contact Finish Thickness:	30.0µin (0.76µm)
Mated Stacking Heights:	15mm, 17mm, 18mm, 20mm, 25mm
Height Above Board:	0.419" (10.64mm)

Please confirm the specifications of the products when ordering.
