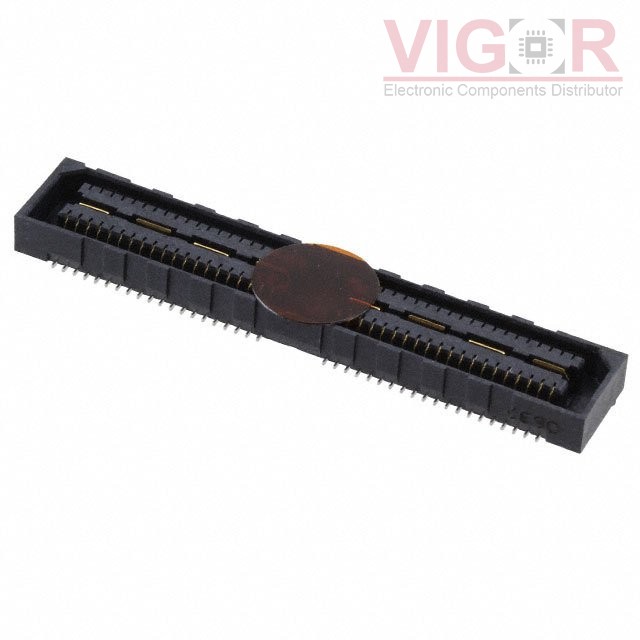

QSE-040-01-L-D-A-K-TR

Part No :: QSE-040-01-L-D-A-K-TR

Manufacturer: Samtec, Inc.

VIGOR # :: 3011166

Description: CONN RCPT 80POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: QSE-040-01-L-D-A-K-TR PDF

Current price of QSE-040-01-L-D-A-K-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

QSE-040-01-L-D-A-K-TR Specifications

Type	Description
Series:	Q Strip® QSE
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Receptacle, Center Strip Contacts
Number of Positions:	80
Pitch:	0.031" (0.80mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Board Guide, Ground Bus (Plane), Pick and Place
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)
Mated Stacking Heights:	5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm
Height Above Board:	0.128" (3.25mm)
