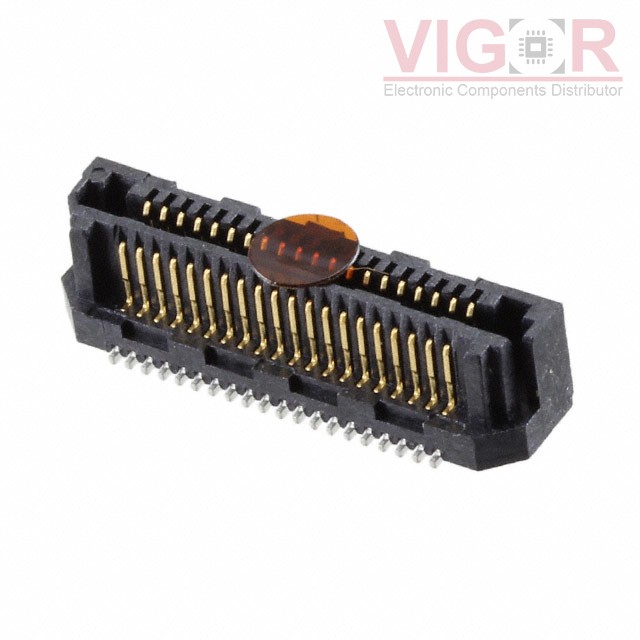

LSS-120-01-L-DV-A-K

Part No :: LSS-120-01-L-DV-A-K

Manufacturer: Samtec, Inc.

VIGOR # :: 3011284

Description: CONN SELF-MATE 40POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: LSS-120-01-L-DV-A-K PDF

Current price of LSS-120-01-L-DV-A-K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LSS-120-01-L-DV-A-K Specifications

Type	Description
Series:	Razor Beam™ LSS
Package:	Tube
Part Status:	Active
Connector Type:	Self Mating, Non-Gendered
Number of Positions:	40
Pitch:	0.025" (0.64mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Board Guide, Pick and Place
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)
Mated Stacking Heights:	6mm, 7mm, 9mm
Height Above Board:	0.169" (4.30mm)

Please confirm the specifications of the products when ordering.
