5015947011

Part No :: 5015947011

Manufacturer: Woodhead - Molex

VIGOR # :: 3011321

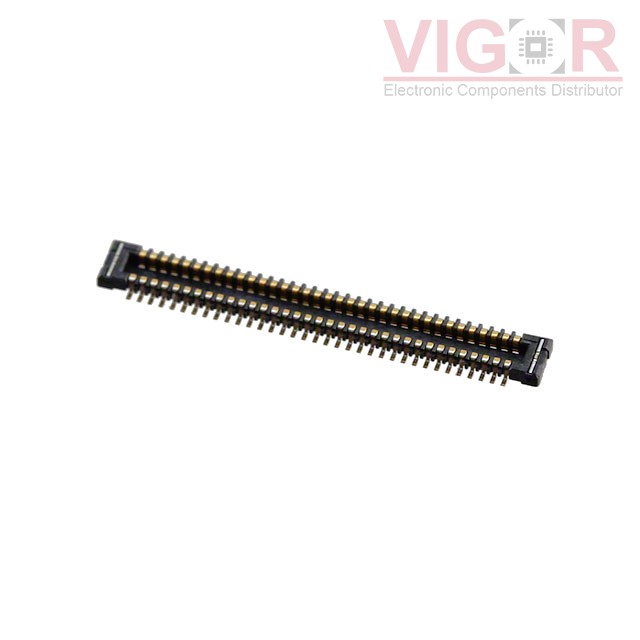

Description: CONN PLUG 70POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: 5015947011 PDF

Current price of 5015947011 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

5015947011 Specifications

Type	Description
Series:	SlimStack 501594
Package:	Tape & Reel (TR)
Part Status:	Active
Connector Type:	Plug, Outer Shroud Contacts
Number of Positions:	70
Pitch:	0.016" (0.40mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Solder Retention
Contact Finish:	Gold
Contact Finish Thickness:	3.94µin (0.10µm)
Mated Stacking Heights:	0.9mm
Height Above Board:	0.028" (0.71mm)

Please confirm the specifications of the products when ordering.
