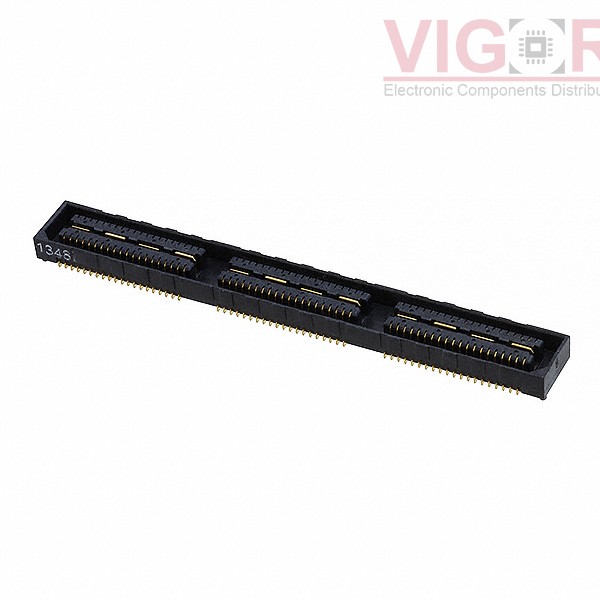

1658462-3

Part No :: 1658462-3

Manufacturer: TE Connectivity AMP Connectors

VIGOR # :: 3011361

Description: CONN RCPT 120POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: 1658462-3 PDF

Current price of 1658462-3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

1658462-3 Specifications

Type	Description
Series:	MICTOR SB
Package:	Tray
Part Status:	Active
Connector Type:	Receptacle, Center Strip Contacts
Number of Positions:	120
Pitch:	0.031" (0.80mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Board Guide, Ground Bus (Plane)
Contact Finish:	Gold
Contact Finish Thickness:	30.0µin (0.76µm)
Mated Stacking Heights:	5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 22mm, 25mm, 30mm
Height Above Board:	0.128" (3.25mm)

Please confirm the specifications of the products when ordering.
